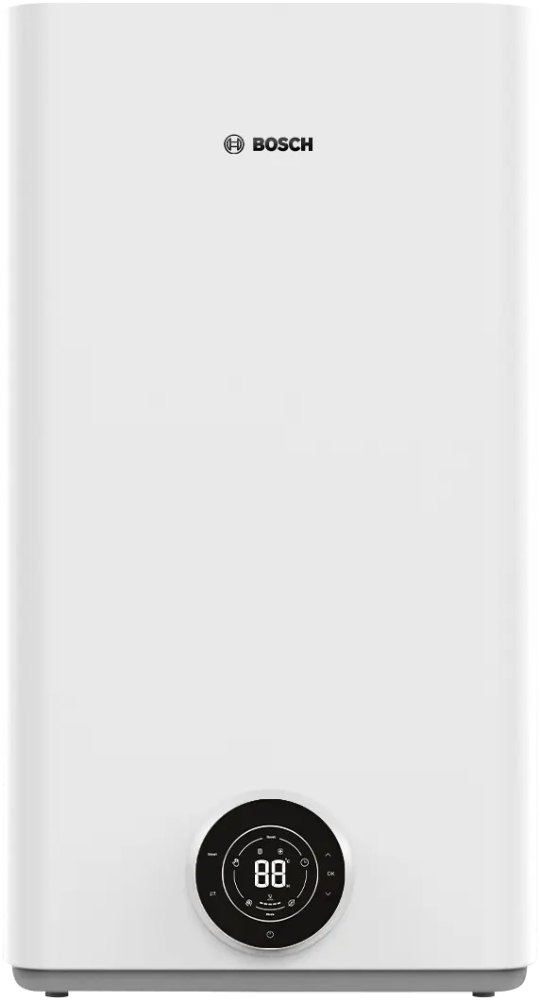

Junkers Bosch Tronic 4501 T electric water heater
From 480€ installed · VAT incl.
Description
Flat Junkers Bosch Tronic 4501 T electric water heater from 30 to 120 litres, vertical or horizontal.
The price includes the water heater, VAT, removal of the old one, fitting and commissioning. It is installed by our own technicians; quote via WhatsApp from photos and, only if needed, a free visit in Barcelona and the metropolitan area.
Who is the Tronic 4501 T for?
It is a flat Junkers Bosch electric water heater, designed for shallow spaces: cupboards, false ceilings or above the washing machine. It can be hung vertically or horizontally and comes in 30 to 120 litres. It is the option when the usual round water heater does not fit or when you need it lying down.
- Shallow: 278 mm deep for the 30, 50 and 70-litre models and 316.5 mm for the 80, 100 and 120-litre ones, according to Bosch.
- Twin tank: hot water arrives sooner than with a single-tank water heater.
- Display showing the water temperature, with 6 keys to choose the mode; it adapts to the orientation if fitted horizontally.
- Smart function: adjusts heating to your usage routines.
- Energy class B in every capacity and a 1.5 kW heating element.
What capacity do you need?
| Capacity | Model | For | Installed price |
|---|---|---|---|
| 30 litres | TR4501T 30 | 1 person or a small flat | 480€ |
| 50 litres | TR4501T 50 | 1 person | 510€ |
| 70 litres | TR4501T 70 | 1-2 people | 550€ |
| 80 litres | TR4501T 80 | 2-3 people | 570€ |
| 100 litres | TR4501T 100 | 3-4 people | 720€ |
| 120 litres | TR4501T 120 | 4-5 people or a bathtub | 750€ |
As a guide, with normal showers. If there is a bathtub or long showers in a row, go up one size. The 80-litre model is wider but much shorter than the 70-litre one (786.5 vs 1,024.5 mm high). Choose the capacity in the selector: the price updates with installation and VAT.
Tronic 4501 T vs the other water heaters we install
| Tronic 2000 T | Tronic 4501 T | Tronic 5501i T | |
|---|---|---|---|
| Installed price (75-80 L) | 430€ | 570€ | 590€ |
| Format | Cylindrical, vertical only | Flat, vertical or horizontal | Flat, vertical or horizontal |
| Capacities | 30-115 L | 30-120 L | 50-120 L |
| Energy class | C | B | B |
| Control from your phone | No | No | Yes, Wi-Fi and HomeCom Easy app |
If you have room for a round water heater standing upright, the 2000 T is the cheapest. The 4501 T is the one that fits shallow spaces or goes horizontally, and its class B uses a little less according to the label (1,304 kWh a year for 80 L, compared with 1,411 kWh for the 75 L 2000 T). The 5501i T is the same format with Wi-Fi so you can control it from your phone.
If what you lack is width rather than depth, look at the Tronic 2000 T slim. If you only need it horizontal, the Tronic 2000 T horizontal costs less (450€ for 75 litres).
Technical specifications
| Brand | Junkers Bosch |
|---|---|
| Model | TR4501T 30 DEBP |
| Capacity | 30 L |
| Warranty | 5-year written warranty on the installation, plus the manufacturer warranty |
What the price includes
- Electric water heater, VAT included
- Removal and disposal of the old unit, if any
- Fitting of the new one and connection to the existing water supply and socket
- Filling, commissioning and function check
Models and installed prices
| Model | Configuration | Capacity | Installed price |
|---|---|---|---|
| TR4501T 30 DEBP | 30 litres | 30 L | 480€ |
| TR4501T 50 DEBP | 50 litres | 50 L | 510€ |
| TR4501T 70 DERB | 70 litres | 70 L | 550€ |
| TR4501T 80 DEBP | 80 litres | 80 L | 570€ |
| TR4501T 100 DEBP | 100 litres | 100 L | 720€ |
| TR4501T 120 DERB | 120 litres | 120 L | 750€ |
Prices include VAT and standard installation. Choose the configuration above to see the exact price.
How to read its technical data
- Energy class B
- The same in every capacity. Label consumption: 485 kWh a year for the 30-litre model (load profile S) and between 1,293 and 1,312 kWh for the 50 to 120-litre ones (profile M).
- Heating time
- From 10 to 60 °C, according to Bosch: 94 min (30 L), 126 min (50 L), 189 min (70 L), 252 min (80 L), 256 min (100 L) and 342 min (120 L). They all have the same 1.5 kW heating element. Thanks to the twin tank, hot water starts to be available sooner.
- Mixed water at 40 °C (V40)
- The water at shower temperature you get from a hot tank: 51, 89, 111, 114, 135 and 174 litres, from the smallest to the largest capacity.
- Dimensions
- Height × width × depth: 588.5 × 469 × 278 mm (30 L), 874.5 × 469 × 278 mm (50 L), 1,024.5 × 469 × 278 mm (70 L), 786.5 × 569 × 316.5 mm (80 L), 901.5 × 569 × 316.5 mm (100 L) and 1,086.5 × 569 × 316.5 mm (120 L).
- Maximum pressure 8 bar
- If the building supply pressure is higher, a pressure reducer is needed. We check this from the photos or, if needed, on a visit.
What can change the price
The price includes removal of the old water heater, fitting and connection to the existing water supply and socket. The following are quoted separately, in writing and before we start:
- A pressure reducer if the supply exceeds 8 bar.
- Moving the water heater or changing its position (from vertical to horizontal) with new piping.
- A new socket or a line from the consumer unit.
- Running the safety valve outlet to a drain, if there is none nearby.
- Special brackets for a plasterboard wall or false ceiling, or a hard-to-reach location.
More information
Frequently asked questions about the TR4501T 30 DEBP
What size of water heater do I need? As a guide: 30-50 litres for one person, 80 litres for two or three, 100 litres for three or four and 120 litres for four or five or if there is a bathtub. We confirm it based on the bathrooms and how you use hot water, from the details you send us via WhatsApp.
How much does it cost to replace an 80-litre water heater? The 80-litre Tronic 4501 T costs 570€ installed, including VAT, removal of the old water heater, fitting, connection and commissioning.
Can it be installed horizontally? Yes. The 4501 T is reversible: it hangs vertically or horizontally, for example in a false ceiling or above the washing machine, and the display adapts to the orientation.
How long does it take to heat up? According to Bosch, heating from 10 to 60 °C takes 252 minutes for the 80-litre model and 256 minutes for the 100-litre one, with its 1.5 kW heating element. Thanks to the twin tank, hot water starts coming out sooner.
What is the difference from the Tronic 2000 T and the 5501i T? The 2000 T is cylindrical, vertical only and class C; it costs 430€ for 75 litres. The 4501 T is flat, reversible, with a twin tank and class B, for 570€ for 80 litres. The 5501i T is like the 4501 T but with Wi-Fi, for 590€ for 80 litres.
